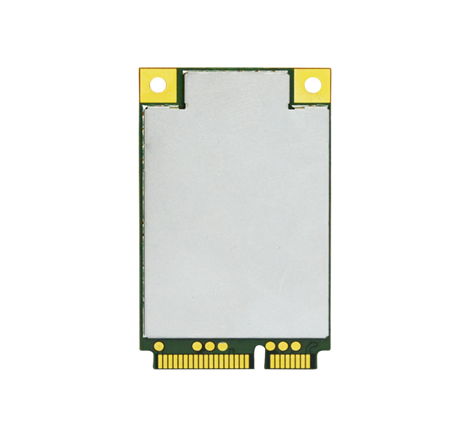

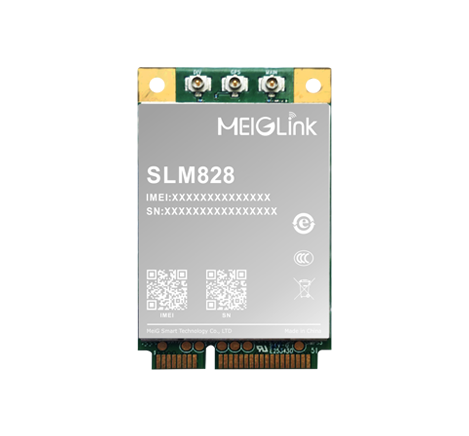

MeiG Smart SLM828 is LTE Advanced module optimized specially for M2M and IoT applications.
Adopting the 3GPP Rel.12 LTE technology and CA technology, it delivers maximum 300Mbps downlink and 50Mbit/s uplink peak data rates.
SLM828 LTE-A module contains two variants: SLM828-EU and SLM828-NA.
SLM828 module adopts MIMO technology, a cutting edge antenna technology capable of transmit multiple data streams from multiple transmitters to multiple receivers. SLM828 also combines Highsensitivity GNSS receiver for positioning.
A rich set of protocols (TCP/FTP/HTTP) and multiple OS compatibility extend the applicability of the module to a wide range of M2M applications.
Main advantages:
● SLM828 has a maximum downlink rate of 300Mbps and a maximum upstream rate of 50Mbps.
● Support DL 2CA，3CA
● Qualcomm® IZat™ Gen 8C engine,Support GPS/GLONASS/BeiDou
● Support Voice Codec (HR/FR/EFR/AMR/AMR-WB)，Support SRLTE/CSFB/VOLTE (optional）
● USB2.0/USB3.0 High Speed Interface
● TCP/IP Embedded Protocol Stacks
| Basic Attributes: | |
| Product number: | SLM828 module |
| Package: | MiniPCIe package（52pin） |
| Size(mm)： | 51.0×30.0×4.5mm |
| Weight: | < 10g |
| Module Rate: | |
| LTE-FDD (Cat.6)： | Max 300Mbps(DL)/50Mbps(UL) |
| DC-HSPA+： | Max 42Mbps(DL)/5.76Mbps(UL) |
| WCDMA： | Max 384kbps(DL)/384kbps(UL) |
| Drivers & Tools: | |
| Drivers： | Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10, Linux, Android |
| Tools： | One Click update tool, Gobinet Dial Tool |
| *FOTA upgrade | |
| Module Interface: | |
| USB 2.0/USB 3.0 | |
| UART×3 | |
| SIM card Interface(1.8 / 3.0V) | |
| Antenna Interface：Main/Diversity/GNSS（Optional） | |
| I2C×1 | |
| SDIO×1 | |
| Power On/Off,Reset | |
| ADC×2 | |
| SPI×1 | |
| PCM×1 | |
| PCIe×1 | |
| GPIOs | |
| Certification Information: | |
| CE/FCC/PTCRB | |
| Transmit power: | |
| WCDMA/HSPA 23+1/-3dBm，LTE 23±2.7dBm | |
| Protocols: | |
| TCP*/UDP*/SSL*/HTTP(S)*/FTP*/PPP/PING/DTMF*/QMI | |
| Environmental Temperature: | |
| Working temperature: | -40℃ to 85℃ |
| Storage temperature: | -45℃ to 90℃ |
| Humidity: | 5%~95% |
| Band Description of SLM828： | |
| SLM828-EU | |
| Frequency band: | LTE-FDD：B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD：B38/B40/B41 WCDMA：B1/B3/B5/B8 |
| CA: | Intra ntiguous:CA_1C,CA_3C,CA_5B,CA_7B,CA_7C,CA_8B,CA_38C,CA_40C,CA_41C; Intra Non-contiguous: CA_1A-1A,CA_3A-3A,CA_5A-5A,CA_7A-7A,CA_40A-40A,CA_41A-41A; Inter band CA: CA_1A-3A,CA_1A-5A,CA_1A-7A,CA_1A-8A,CA_1A-20A,CA_1A-28A,CA_1A-38A,CA_1A-40A,CA_1A-41A, CA_3A-5A,CA_3A-7A,CA_3A-8A,CA_3A-20A,CA_3A-28A,CA_3A-38A,CA_3A-40A,CA_3A-41A, CA_5A-7A,CA_5A-38A,CA_5A-40A,CA_5A-41A, CA_7A-8A,CA_7A-20A,CA_7A-28A,CA_7A-32A, CA_8A-32A,CA_8A-38A,CA_8A-40A,CA_8A-41A,CA_20A-32A, CA_20A-38A,CA_20A-40A, CA_28A-32A,CA_28A-38A,CA_28A-40A,CA_28A-41A |
| GNSS： | Support |
| SLM828-NA | |
| Frequency band: | LTE-FDD:B2/B4/B5/B7/B12/B13/14/17/ B25/B26/B29/B30/B66/B71 WCDMA: B2/B4/B5 |
| CA: | Intra ntiguous:CA_2C,CA_5B,CA_7B,CA_7C,CA_12B; Intra Non-contiguous:CA_2A-2A,CA_4A-4A,CA_5A-5A,CA_7A-7A,CA_12A-12A,CA_25A-25A,CA_66A-66A； Inter band CA: CA_2A-4A,CA_2A-5A,CA_2A-7A,CA_2A-12A,CA_2A-13A,CA_2A-14A,CA_2A-29A,CA_2A-30A,CA_2A-66A, CA_2A-71A, CA_4A-5A,CA_4A-7A,CA_4A-12A,CA_4A-13A,CA_4A-29A,CA_4A-71A, CA_5A-7A,CA_5A-25A,CA_5A-30A,CA_5A-66A, CA_7A-12A,CA_7A-20A,CA_7A-28A, CA_12A-25A,CA_12A-30A,CA_12A-66A, CA_13A-66A, CA_14A-30A,CA_14A-66A, CA_25A-26A, CA_29A-30A,CA_29A-66A, CA_66A-71A |
| GNSS： | Option |
